15.6" Closed Frame Touch Display: GreenTouch Industrial-Grade Visual Performance and OEM Integration

Read Time:2 Minute, 52 Second

Industrial automation and commercial equipment require reliable touch displays that combine optical clarity, environmental durability, and flexible installation. The GreenTouch 15.6" Closed Frame Touch Display (3A Series) features a pure flat front panel, an original Sharp LQ156T3LW05 a-Si TFT-LCD, 400 cd/m² brightness, and wide viewing angles. Designed for OEM manufacturers and system integrators, it delivers stable visualization and responsive interaction for demanding applications.

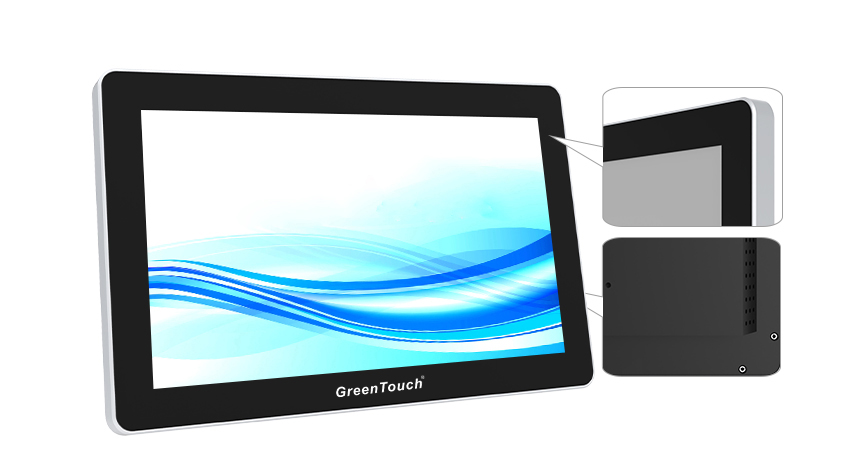

Pure Flat Front Panel and Industrial Design

The GreenTouch 3A Series adopts a pure flat front panel with a seamless appearance, eliminating raised bezel edges for easier cleaning and modern equipment integration.

Its aluminum alloy frame and metal rear housing provide structural durability. The front panel features IP65 dust and water protection and IK06 impact resistance, helping protect the display against daily industrial exposure.

Original Sharp a-Si TFT-LCD for Reliable Display Quality

Unlike conventional consumer-grade displays, this 15.6-inch industrial touch display adopts an original Sharp LQ156T3LW05 a-Si TFT-LCD panel, designed to deliver consistent image quality and dependable visual performance.

The original LCD construction supports stable image reproduction, clear interface graphics, and reliable display operation. It is particularly suitable for industrial HMI systems where accurate visualization and consistent component quality are essential.

9436e77f17cc46d1d1e9d77560983c51

Wide Viewing Angles and 400 cd/m² Brightness

The display features wide viewing angles, allowing operators to view equipment status, production data, and control interfaces from different positions with reduced image distortion.

With 400 cd/m² brightness, it provides clear visibility under typical indoor industrial lighting. The combination of wide-angle viewing and LED backlighting improves usability in factory workstations, self-service terminals, and control systems.

Wide Operating Temperature for Industrial Environments

For projects requiring extended environmental adaptability, the specified wide-temperature configuration targets an operating range of -20°C to 70°C, subject to final configuration validation.

This capability is intended for industrial equipment installed in environments with significant temperature variations, helping maintain dependable display performance beyond standard office conditions.

Multi-Touch, Connectivity and Flexible Mounting

The projected capacitive touchscreen supports 10-point multi-touch interaction for smooth and accurate operation. USB touch communication and support for Windows, Android, and Linux simplify system integration.

Aeccd3d7792ee04e049bec7bdacaae00

Available video interfaces include VGA, DVI, HDMI, and DisplayPort, depending on configuration.

Standard VESA 75×75 mm and 100×100 mm mounting options support desktop, wall-mounted, and equipment-integrated installations.

OEM Customization and Industrial Applications

GreenTouch provides OEM/ODM customization, including product dimensions, company logos, display brightness, AG/AF/AR glass treatments, and interface configurations.

Typical applications include industrial automation HMIs, manufacturing control panels, medical equipment, self-service kiosks, retail POS terminals, and transportation information systems.

FAQ About the 15.6" Closed Frame Touch Display

Q:What LCD panel does this model use?

A:The specified configuration adopts an original Sharp LQ156T3LW05 a-Si TFT-LCD panel.

Q:Why are wide viewing angles and 400 cd/m² brightness important?

A:They improve screen readability from different operator positions and under typical industrial lighting conditions.

Can the display support wide-temperature applications?

A -20°C to 70°C operating configuration is targeted for projects requiring extended temperature performance, subject to technical confirmation.

Partner with GreenTouch for Industrial Touch Displays

GreenTouch provides customized industrial touch display solutions for global OEM manufacturers and equipment integrators. Visit https://www.greentouch.com.cn to discuss LCD panel selection, environmental requirements, mounting design, and customized 15.6-inch touch display projects.
